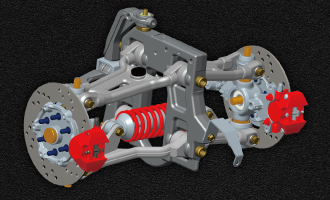

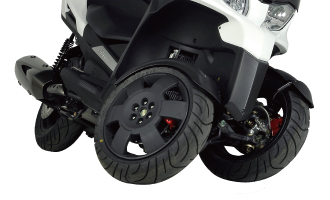

Independent Wishbone Suspension Front Independent Tilting Suspension system of AD3 promise excellent road holding in all weathers and greater safety when dealing with the problems of driving in big cities, such as tracks, cobbles and drain covers.

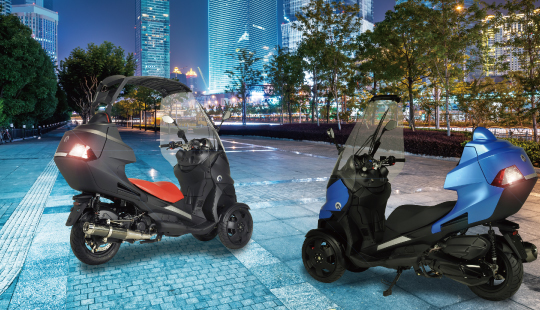

Adiva Urban Commuter for the Next Stage
The AD3 series promise excellent road holding in all weathers and greater safety when dealing with the problems of driving in big cities, such as tracks, cobbles and drain covers. The fact that they are closer to the ground, their suspension, an excellent chassis and two front wheels mean they can take corners more quickly and more precisely.
Modular Protection System Adiva Patented System of Modular Protection with Foldable Roof System + Large Windshield offer you confortable Riding in all weather conditions.

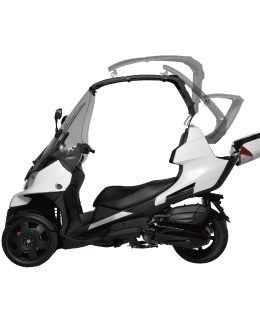

Foldable Roof System
Patented system of modular protection which allows the driver to fold in few seconds the roof back in the rear box. the driver is therefore able to choose the best configuration of the vehicle depending from weather
conditions and riding preferences.

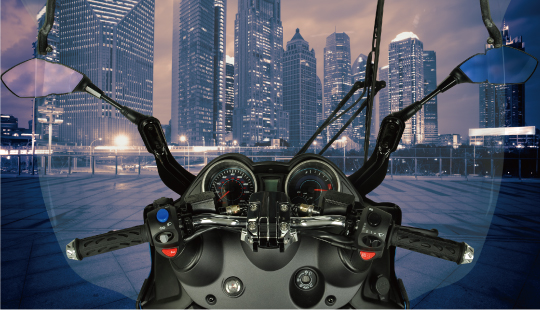

Large Widnshield
UV Protected Windshield with the wiper improves dramatically the visibility under wet conditions, while representing at the same time a further source of urban commuter safety.

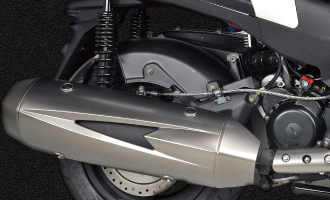

SOHC 4-Valves Liquid Engine Powered by SOHC 300cc / 200cc Engine with Fuel Injection System offer you Excellent fuel efficiency and Smooth acceleration.

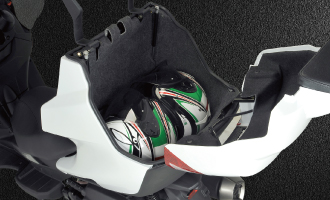

Large Storage Capacity AD3 offers you plenty of space in its boot and glove compartment with the front innver box, and the rear trunk with 90-litre capacity can accommodate two full-face helmets.

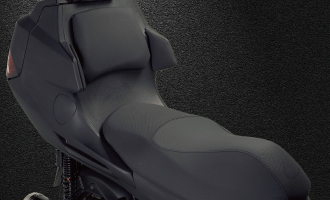

Comfortable Seat 740mm height stable seat with smooth open and close system.

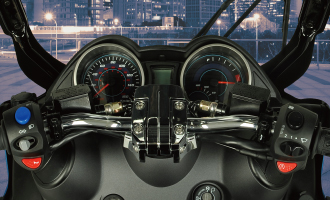

Digital Multi LCD Dashoborad Easy viewable simple design with digital speed meter, fuel, and water temperature gage.
| AD3 300 | ||
|---|---|---|
| ENGINE TRANSMISSION | ||
| ENGINE | single cylinder four-cycle | |
| DISPLACEMENT | 299 cc | |
| BORE X STROKE | 72,7 x 72 mm | |
| MAX POWER | 21,9kw @ 7750 rpm | |
| MAX TORQUE | 30,1 Nm @ 6250 rpm | |
| GASOLINE | unleaded petrol | |
| LUBRICATION | ||
| ENGINE START | electric start | |
| COOLING | water-cooled | |
| GEAR | CVT with automatic clutch | |
| WHEELS | ||
| TYRES | front 130/60 x 13», rear 150/70 x 13» tubeless | |
| RIMS | 5 spokes aluminium rims, front 3.50 x 13″, rear 4.00 x 13″ | |
| FRONT BRAKE | double 220 mm disc brake | |
| REAR BRAKE | 240 mm disc brake | |
| FRAME | ||
| FRAME | high-resistance steel pipe and traily mixed frame | |
| FRONT SUSPENSIONS | single two-ways shock absorber | |
| REAR SUSPENSIONS | engine behaving structural, double rear two-ways shock absorbers preload adjustable on 5 positions | |
| SIZES | ||
| LENGTH | 2180 mm | |
| WIDTH | 700 mm | |
| HEIGHT | 1759 mm | |
| SEAT HEIGHT | 700 mm | |
| WHEEL BASE | 1560 mm | |
| DRY WEIGHT | 202 kg | |
| GASOLINE TANK | 12,2 litres (2,0 litres reserve) | |
| HOMOLOGATION | ||
| FUEL CONSUMPTION ON BENCH | 22km/l; | |
| HOMOLOGATION | Euro 3 | |
| ACCESSORIES | Roof deflectors Thermo scud Luggage’s strap Rear spoiler Side spoilers Heater Roll-lock system |
